HAM DinSwitchM
HAM DinSwitchM
Wi-Fi Din Rail Switch with Energy Metering 1P
VAT not included in price
In stock
Couldn't load pickup availability
Technical Specifications
Technical Specifications
- Input (C/T): One (1) from current transformer (C/T) with 1:1000 ratio up to 80A
- Input (General): One (1) for dry contact (under 230 VAC)
- Outuput: One (1) up to 5A 230 VAC (for bigger loads, combination with DIN rail relay)
- Measurement: Energy, Power, Current, Voltage, Angle, Power Factor
- Analysis: Energy: 0.1 kWh, Power: 1 W, Current: 0.01A, Voltage: 1V, Angle: 0.1 Power Factor: 0.01
- Accuracy: ± 4%
- Device material: ABS V0
- Dimensions device: DIN standard, width of one (1) position (17.5mm)
- Dimensions C/T: 40x26x23 mm, max cable diameter 10mm
- Installation: Within electrical panel
- Instant alerts via app, email, SMS, phone call
-
Rated Operating Voltage
230 VAC
-
Connectivity
Wi-Fi 802.11 b/g/n 2.4GHz
-
Warranty
2 years warranty and 30-day money back
-
Made in EU
Premium quality and customer support
Android, iOS and web app

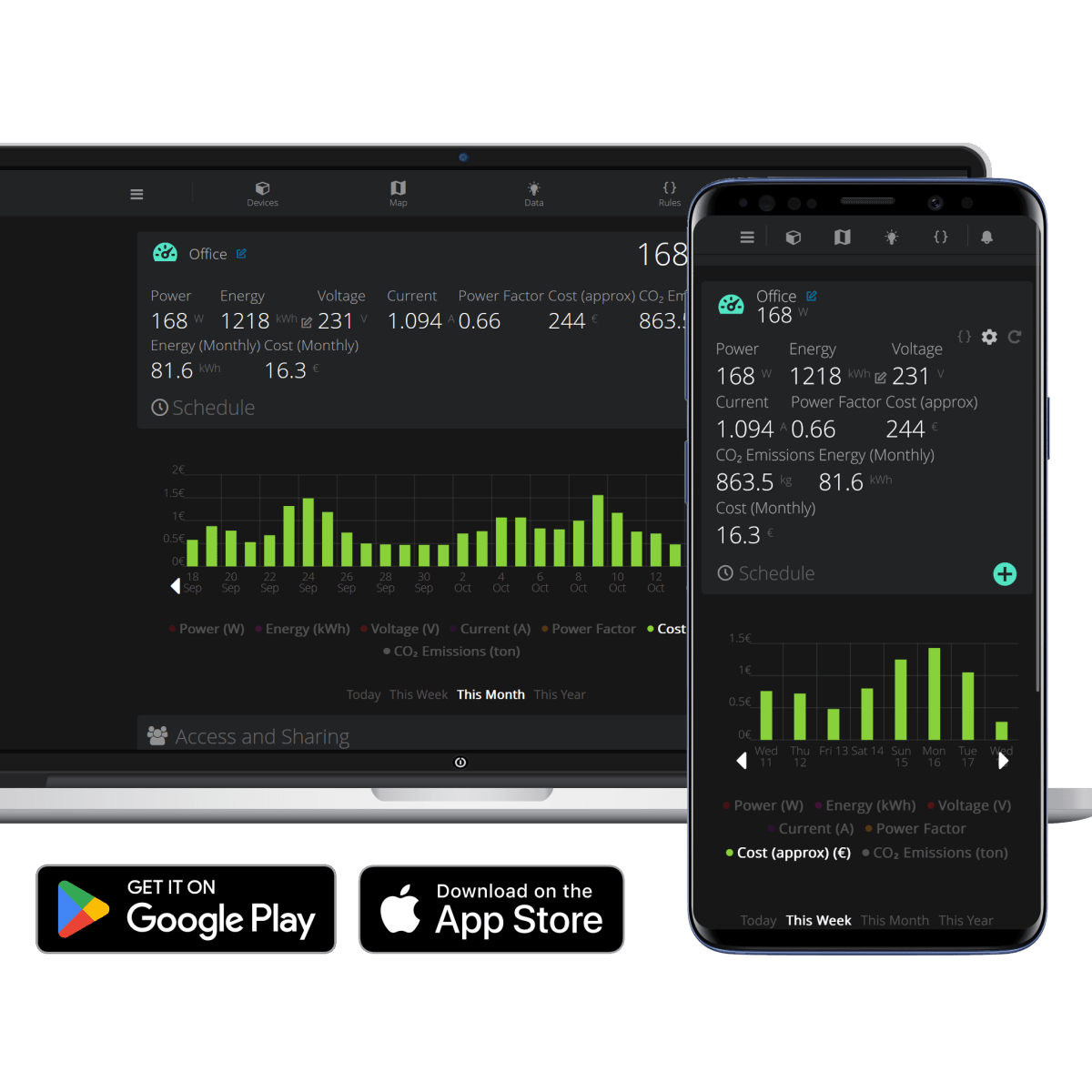

Remote Monitoring
Our Wi-Fi energy meters provide real-time data on energy consumption, allowing you to instantly see how much electricity you are using at any given moment. This level of information can provide insight into which appliances are consuming the most energy.
By identifying high consumption periods or appliances, you can adjust their usage patterns to take advantage of off-peak rates or simply reduce unnecessary consumption, resulting in lower energy bills.
Reducing energy consumption not only saves money, but also results in a smaller carbon footprint.
Detailed Insights, Reports in PDF, CSV
Data-Driven Decisions
Our real-time energy usage data allows businesses to identify and eliminate wasteful practices, thereby streamlining operations. This is particularly beneficial for businesses that operate 24/7, such as data centers or manufacturing plants.
By understanding peak usage times and devices, businesses can adjust their operations to reduce costs. This could include scheduling energy-intensive tasks during off-peak hours or taking advantage of lower tariffs.
Detailed consumption reports enable businesses to make informed decisions, whether it's upgrading to energy-efficient equipment or restructuring operations to save energy.
Get notified
Instant alerts via app, email, SMS, phone call
Receive alerts on unusual usage patterns that may indicate a faulty device or other problem. This early detection can lead to faster problem resolution and further savings.
Our system will immediately notify you when something goes wrong with a push notification, email, SMS or will even call on your phone!
Save on Bills
Lighting Control and Scheduling
Whether you're looking to set a cozy mood in your patisserie, or need bright illumination for a crucial office presentation, our IoT solutions let you control and pre-set lighting schedules with precision.
Automate your lights to turn on or off depending on the time of day, ensuring energy efficiency and just the right atmosphere for any situation.
Frequently Asked Questions
What if the power goes out?
In the event of a power or internet outage, you can receive alerts by setting up a rule that checks if the device has been disconnected. Even if there's no internet connection, total energy consumption is still recorded and saved until the connection is restored (assuming the device has power).
Are there any costs other than the price of each device?
Using our app to view readings, logged data, graphs, set up automations and alerts is completely free. We have apps for Android and iOS devices and you can also access the full functionality of the apps with your computer via our website (hamsystems.eu). There is a small subscription fee for some optional features, such as phone call alerts.
Do I need Wi-Fi?
Yes, a Wi-Fi network with Internet access is required for the device to work.
Where are they made?
Our devices are designed and tested in EU (Greece). All of our devices have passed all required lab tests to have the CE mark affixed.
Will you support me?
We are here to support you every step of the way. If you encounter any issues, please don't hesitate to contact us, and we will assist you in finding a solution. Your feedback is crucial to designing our new solutions. We appreciate your input.
