Teltonika

FMC230 - Water-resistant 4G GPS tracker temperature recorder

Track and secure your refrigerator truck with FMC230, a water-resistant 4G GPS tracker and temperature recorder. Enjoy real-time location updates, robust design, and comprehensive data logs - perfect for demanding logistics and cold chain applications. Receive instant alerts (email, SMS, call, push) if readings exceed your preset range, export logs (PDF/CSV) for audits.

€147,00

Sale Sold out

VAT not included in price

Option Device + temperature sensor + SIM Device + SIM Device only

Device + SIM: Pre-configured for HAM Systems platform

Device only: NOT configured for HAM Systems platform

Quantity

Technical Specifications

Digital Output: Three (3)
Digital Input: Three (3)
Analog Input: Two (2)
1-wire: One (1)
GNSS: GPS, GLONASS, GALILEO, BEIDOU
Connectivity: 4G (LTE Cat 1) connection with fallback to 2G (GSM) network
Bluetooth Technology: 4.0 + LE
Dimensions/Weight: 85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket), 79g
IP rating: IP67
Operating Temperature (with Battery): -20°C to +60°C
Operating temperature (without battery): -20°C to +85°C

View full details

Rated Operating Voltage
10–30 V DC with overvoltage and reverse polarity protection
Connectivity
4G (LTE Cat 1) connection with fallback to 2G (GSM) network (needs SIM card)
Internal Back-up battery
170 mAh Li-Ion battery, 3.7 V (0.63 Wh)
Warranty
2 years warranty and 30-day money back

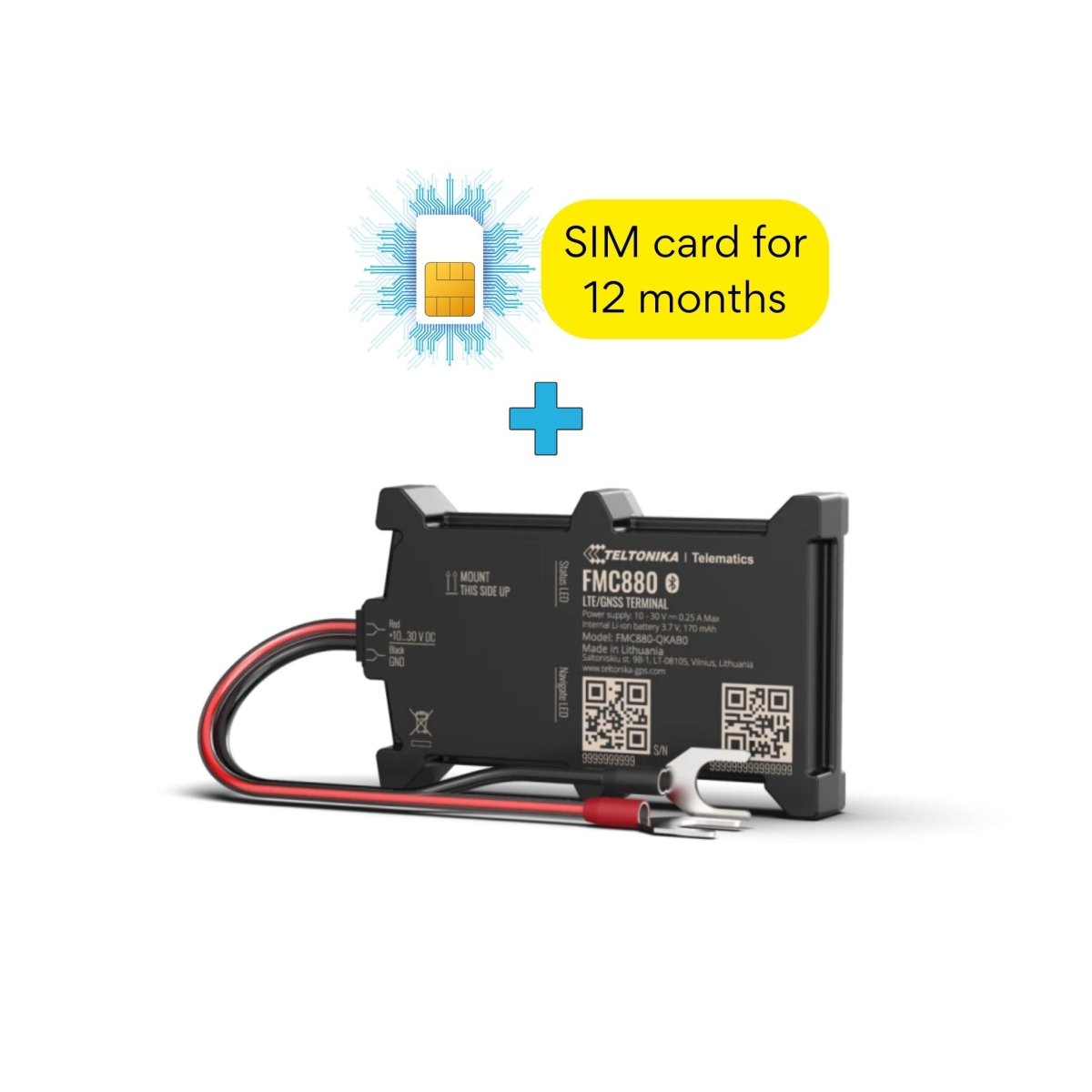

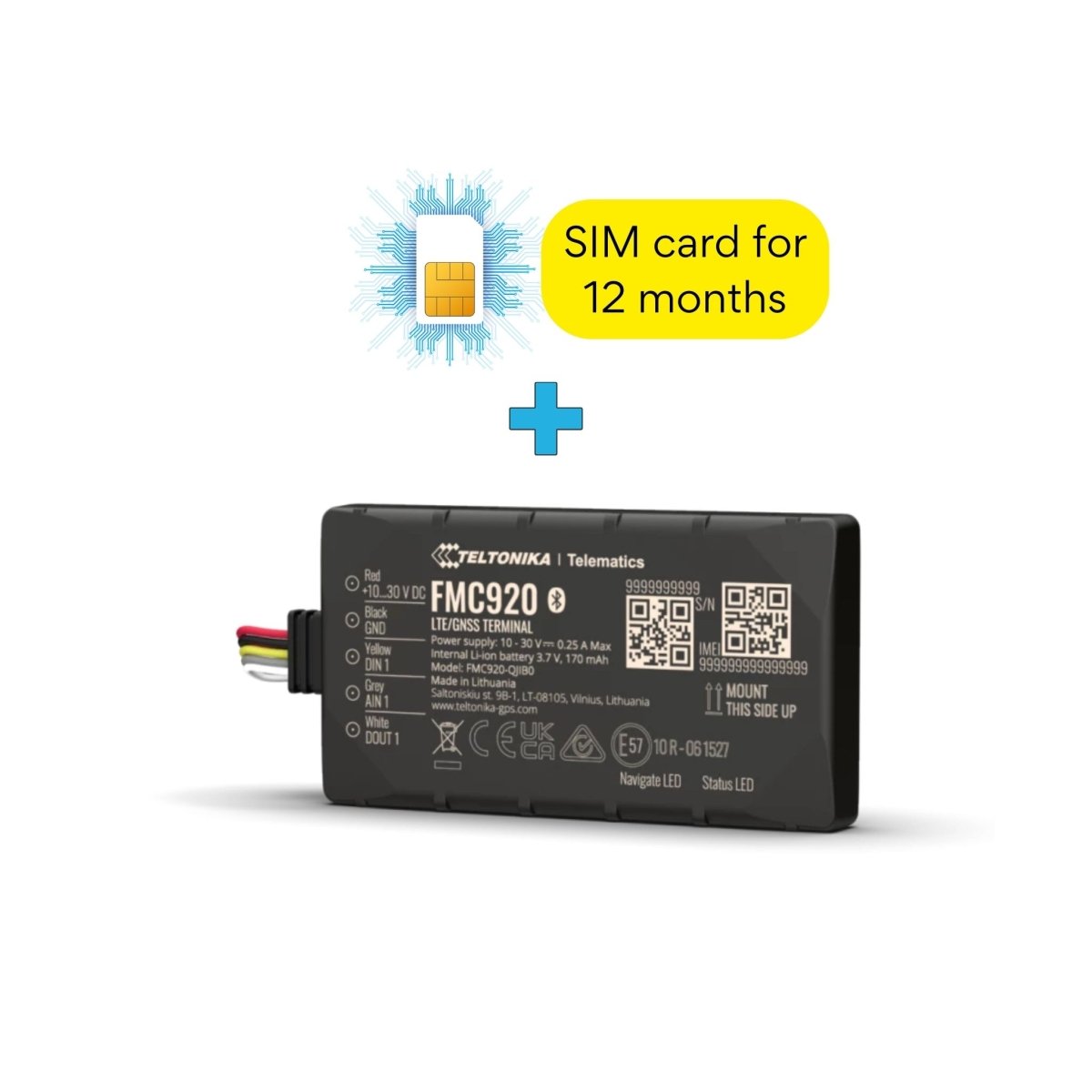

Specification comparison between products FMC230 - Water-resistant 4G GPS tracker temperature recorder, FMC880 - Water-resistant high GNSS precision 4G GPS tracker, FMC920 - Compact 4G GPS model for basic fleet tracking
	FMC230 - Water-resistant 4G GPS tracker temperature recorder (0) View details	FMC880 - Water-resistant high GNSS precision 4G GPS tracker (0) View details	FMC920 - Compact 4G GPS model for basic fleet tracking (0) View details
Specifications
Connectivity	4G and 2G	4G and 2G	4G and 2G
Hardware inputs	Temperature sensor + 3 Digital Inputs	-	1 digital input
Power supply	10-30V DC	10-30V DC	10-30V DC
Connector type	12 pin	U-Type	Cable
Ingress protection	IP67	IP65	IP54
GNSS antenna	Internal High Gain	Internal High Gain	Internal High Gain
Battery capacity	170 mAh	170 mAh	170 mAh
Operating temperature (without battery)	-40 °C to +85 °C	-40 °C to +85 °C	-40 °C to +85 °C
Operating temperature (with battery)	-20 °C to +40 °C	-20 °C to +40 °C	-20 °C to +40 °C
Dimensions	85,0 x 67,0 x 25,6 mm (L x W x H) (length with connector socket)	92.5 x 57.6 x 14 mm	79 x 43 x 12 mm

1 3
